    Unhappy Destroyed my WiFi antenna cable connector

    I managed to jam up the SIM tray mechanism in my iphone while messing around with a NextSIM, so that the SIM tray would not insert all the way into the phone.

    Decided to take the phone apart to fix it. Fixing the SIM tray tuned out to be easy - there's a small locking pin at the bottom of the SIM slot that had gotten out of position.

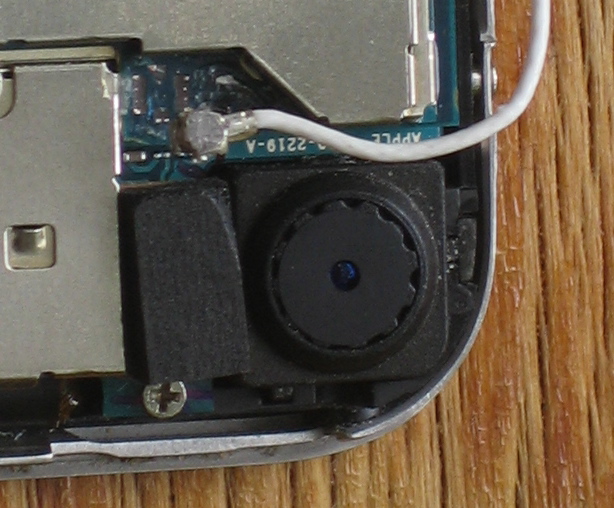

    Unfortunately when I was disconnecting the antenna cables, I screwed up. While unplugging the antenna cable I managed to not unplug the cable but rather snap the entire surface mounted cable connector off the board - no thanks to that lovely glue that Apple covers everything with.



    Since the contacts are so tiny it looks extremely difficult to solder the connector back on. The real bummer is that this is an OTB 1.0.0 phone, fully unlocked, now rendered pretty useless without WiFi. Don't ask me why I was putting a NextSIM in it



  2. #2
    Rookie Array

    Join Date
    Dec 2007
    Posts
    26
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    Sounds like u were having a play!! Of course none of us ever do that!!!

    Soldering this yourself is a recipe for disaster. I suggest finding a pro.

    Good luck.

  3. #3
    Newbie Array

    Join Date
    Jan 2008
    Posts
    2
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    The same thing happened to me. You have to open the metal cover from the motherboard. Find the trace that goes from the connector to the board, scratch it. Put some solder on it. Now cut your antenna wire, you'll see the yellow wire inside. Just clean it and solder it to the trace an glue it.

  4. #4
    Newbie Array

    Join Date
    Feb 2008
    Posts
    9
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    Quote Originally Posted by adichek View Post
    The same thing happened to me. You have to open the metal cover from the motherboard. Find the trace that goes from the connector to the board, scratch it. Put some solder on it. Now cut your antenna wire, you'll see the yellow wire inside. Just clean it and solder it to the trace an glue it.
    where does the trace lead? i cant find where it goes?

    also, where does the actual antenna (not wifi) lead to? i need somewhere to solder that to as well

  5. #5
    Newbie Array

    Join Date
    Jun 2009
    Posts
    1
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    sorry for butting in but speaking of antenna cables i took my iphone apart because the touch panel is broken on it and in the process i acidentally pulled the antenna cable from where it connects to the mother board i think it is the wifi cable anyway just wondering if anyone had any suggestions on how to fix it!


  6. #6
    Administrator Array

    Join Date
    Oct 2007
    Posts
    4,145
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    10

    Default

    solder it back on.
    ** If you just want to support hackint0sh.org with a donation click here **

  7. #7
    Newbie Array

    Join Date
    Feb 2010
    Posts
    2
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    is it enough to just solder the yellow cable?
    what about the other wires??
    (i destroyed the cable to the gsm antenna)
    sorry for posting in this old thread.

  8. #8
    Newbie Array

    Join Date
    Feb 2010
    Posts
    2
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    pls help me!
    I need to sell the iphone, i have no money to pay the rent

  9. #9
    Newbie Array

    Join Date
    Nov 2008
    Posts
    1
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    Hello,

    The answer is "YES", it is enough to just solder the yellow cable. I had the same problem on my Iphone 2G 16 GB and I solved it in this way.
    However, you can test this before closing the lid phone.

    Good luck.

  10. #10
    Newbie Array

    Join Date
    Jul 2010
    Posts
    2
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default Bump(kinda)

    so with this theory you could just solder the bottom of the board connector onto the board contacts but make it into one large pad like connector?
