    Default A few pics of the hardware unlock

    A few piccy of my hardware unlock.



    iphone in pieces gettin scary


    decided to leave the switch and rear case controls connected

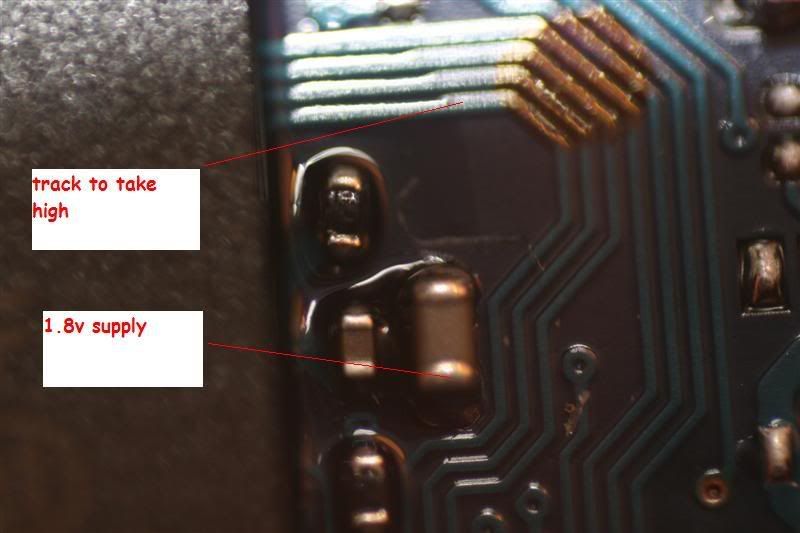

    How small! the tracks were alot smaller then i thought! smallest probing needle in the pic, sory about the blury pic.


    close up of the tracks



  2. #2
    Advanced Array

    Join Date
    Jul 2007
    Posts
    48
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default


    Board probed and shorted with ieraser going! looking good!


    Only sign of the board being fiddled with!


    Phone back together and tested every works perfectly (except for the obvious visual voice mail). Connected to orange, signal is as good as my n95 , so
    happy that i have a phone as well as the other cool features!
    sidenote: phone was on 1.0.2 firmware when hardware hacked.

    mikey

  3. #3
    Senior Professional Array

    Join Date
    Aug 2007
    Posts
    367
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    25

    Default

    What did you use to short eh 1.8v and the trace?

  4. #4
    Advanced Array

    Join Date
    Jul 2007
    Posts
    48
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    i used 2 probes, the iphone was clamped down lightly!,then two jigs with 01 size probing needles were lowered down on the board with with the help of some magnification connection was tested with minicom in putty with the at command, and went from there.

  5. #5
    Senior Professional Array

    Join Date
    Jul 2007
    Posts
    187
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    16

    Default

    Love that background + skin colour mikey, where'd ya get it?

    Also - its not very clear where you get the 1.8v from... can you please explain that part a bit more?

    Thanks
    Last edited by phattie; 08-27-2007 at 05:41 PM.


  6. #6
    Advanced Array

    Join Date
    Jul 2007
    Posts
    48
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    Quote Originally Posted by phattie View Post
    Love that background + skin colour mikey, where'd ya get it?

    Also - its not very clear where you get the 1.8v from... can you please explain that part a bit more?

    Thanks

    theme should still be in the download section of modmyiphone or i can email it to you if you want it.

  7. #7
    Senior Professional Array

    Join Date
    Jul 2007
    Posts
    187
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    16

    Default

    Thanks for replying so fast, I think I may try it as im getting sick of waiting for some poxy software unlock that looks dodgy.

    Did you scrape away the top of that 1.8v supply to connect it?

    Are you in the UK btw?

  8. #8
    Advanced Array

    Join Date
    Jul 2007
    Posts
    48
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    0

    Default

    yeh im in the uk, in essex no i did no scraping i did not think that it was needed

  9. #9
    Professional Array

    Join Date
    Aug 2007
    Posts
    57
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    9

    Default

    Great job mate,

    I see that you scraped the track and just touched the tip of the needle on top of the 1.8 v supple?

  10. #10
    Senior Professional Array tramuyo's Avatar

    Join Date
    Aug 2007
    Posts
    227
    Post Thanks / Like
    Downloads
    0
    Uploads
    0
    Rep Power
    18

    Default

    that are the photos what im looking for thank you
